    Product name

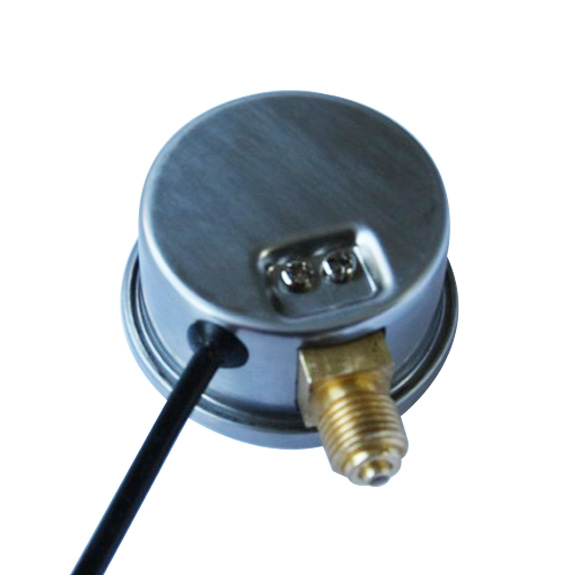

    40mm high pressure & quality stainless steel case with inner signal output auto part of CNG pressure meter
    Model number
    YCNGTN-40A
    Diameter size
    40mm
    Case/cover
    stainless steel 304
    Window
    glass
    Connection
    brass
    bottom/back
    Thread
    G/PT/NPT1/4, M14*1.5 etc.
    Bourdon tube
    phosphor bronze
    Movement
    brass
    Dial plate
    aluminum
    Pressure range
    400bar/250bar etc.
    Accuracy
    2.50%
    Design
    EN837-1;KS B 5305 etc.



    Model:ZL1001
    Level Sensor out voltages

    Condicion
    Typcal
    Max
    Units
    0bar
    4.8
    5
    V
    50bar
    3.31
    3.4
    V
    75bar
    2.29
    2.4
    V
    100bar
    1.23
    1.3
    V
    150bar
    300
    350
    mV

    Model:ZL1002
    Level Sensor out voltages

    Condicion
    Typcal
    Units
    40bar +/-10bar
    2.5 +/-1v
    V
    65bar +/-10bar
    5 +/-1v
    V
    100bar +/-10bar
    7.5 +/-1v
    V
    140bar +/-10bar
    11.3 +/-1v
    V
